SIM32ELA精準高靈敏度導航引擎定位模塊模組
SIM32ELA是一款高性能、可靠的GNSS模塊。它是一個GNSS模塊，與GPS &GLONASS &BDS & Galileo & QZSS系統集成在一個LCC類型中，具有AIROHA的高靈敏度導航引擎，允許客戶以更低的功耗實現行業高水平的靈敏度、準確性和首ci定位時間(TTFF)
產品描述：SIM32ELA精準高靈敏度導航引擎定位模塊模組
SIM32ELA是一款高性能、可靠的GNSS模塊。它是一個GNSS模塊，與GPS &GLONASS &BDS & Galileo & QZSS系統集成在一個LCC類型中，具有AIROHA的高靈敏度導航引擎，允許客戶以更低的功耗實現行業高水平的靈敏度、準確性和首ci定位時間(TTFF)。
SIM32ELA提供同步GPS、GLONASS、BDS、Galileo和QZSS開放服務L1接收能力。憑借47個GNSS接收器通道，SIM32ELA可以采集和跟蹤多個衛星信號的任意組合。SIM32ELA將名為EASY(嵌入式輔助系統)的*AGPS與成熟的AlwaysLocate技術相結合，實現了最gao的性能，完quan符合工業標準。
產品優勢：SIM32ELA精準高靈敏度導航引擎定位模塊模組
輕松支持EASYTM自生軌道預測
支持 EPOTM軌道預報
支持SBAS測距(WAAS、EGNOS、GAGAN、MSAS)
支持清除堵塞
集成了低噪聲放大器
嵌入式天線
Mechanical data

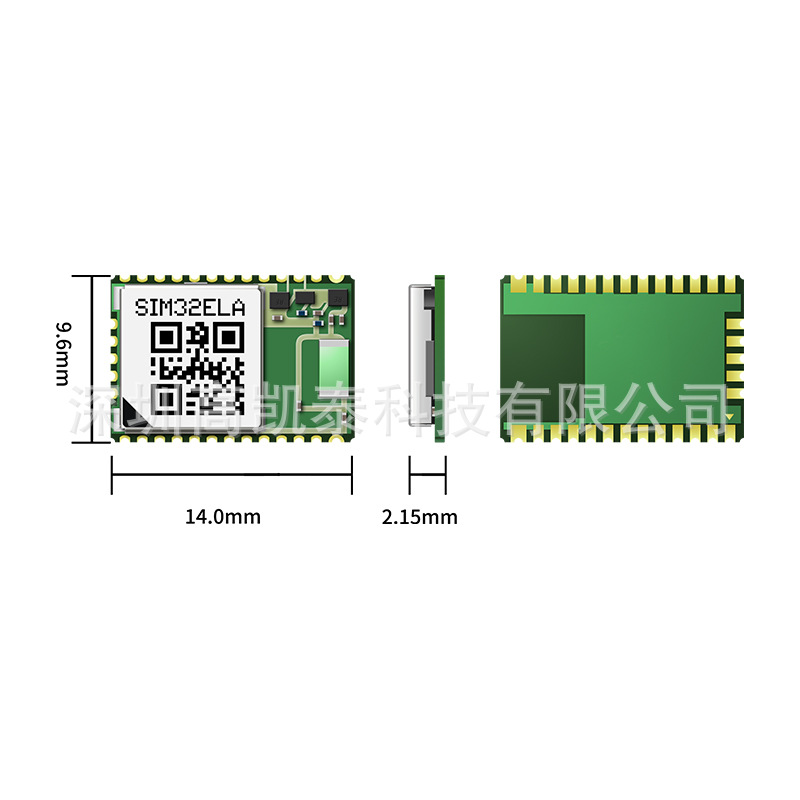

•Dimensions 14*9.6*2.15mm
•Weight 0.5g
Features
Support GPS/GLONASS/BDS/Galileo/QZSS
(L1 Band Receiver 1575.42MHz)
Support EASYTM self-generated orbit prediction
Support EPOTM orbit prediction
Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
(L1 Band Receiver 1575.42MHz)
Support EASYTM self-generated orbit prediction
Support EPOTM orbit prediction
Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Performance data
Receiver type 47channels GNSS receiver
Max. update rate 10Hz
Sensitivity1
Tracking -166dBm
Reacquisition -158dBm
Cold starts -148dBm
Time-To-First Fix2
Cold starts 30s
Warm start 25s
Hot starts 1s
EPO Assist 15s
Accuracy
Automatic Position3 2M
Speed4 0.1m/s
Operation temperature5 -40℃~+85 ℃
Max. update rate 10Hz
Sensitivity1
Tracking -166dBm
Reacquisition -158dBm
Cold starts -148dBm
Time-To-First Fix2
Cold starts 30s
Warm start 25s
Hot starts 1s
EPO Assist 15s
Accuracy
Automatic Position3 2M
Speed4 0.1m/s
Operation temperature5 -40℃~+85 ℃
Interfaces
Serial interfaces UART
Digital I/O Pulse-per-second (PPS)
EINT0 input
Protocols NMEA
RTCM
Digital I/O Pulse-per-second (PPS)
EINT0 input
Protocols NMEA
RTCM
Electrical data
Power supply 2.8V~4.3V
Backup power 2.3V~4.6V
Power consumption2.6
Acquisition 18mA
Tracking 18mA
Sleep current 210uA
Backup 15uA
Backup power 2.3V~4.6V
Power consumption2.6
Acquisition 18mA
Tracking 18mA
Sleep current 210uA
Backup 15uA
Certifications (plan)
• CE
• RoHS/REACH
• RoHS/REACH
