光電總輻射傳感器廠家是一種用于測量太陽總輻射的精密儀器，它能夠準確捕捉太陽輻射中全光譜范圍內的能量。該傳感器基于光電效應原理工作，通過高靈敏度的光電轉換元件，將接收到的太陽輻射能轉換為電信號輸出，進而實現對太陽總輻射強度的量化測量。具有測量精度高、響應速度快、穩定性好等優點，廣泛應用于氣象觀測、農業科研、太陽能利用等領域。在氣象領域，它有助于準確評估太陽輻射資源，為氣候變化研究提供數據支持；在農業方面，可指導作物種植與灌溉，提高農業生產效率；在太陽能行業，則對太陽能電站的選址、設計及性能評估具有重要意義。
一、光電總輻射傳感器廠家技術指標
供電：DC12V
功耗：0.036W
工作環境：-20~65℃
通信接口：RS485
工作電流：3mA@DC12V
最短數據間隔：0.5S
二、傳感器參數
測量要素：輻照度
測量范圍：0-2000W/m2
分辨率：1W/m2
響應時間：≤10S
精度：＜±3%
年穩定性：≤±3%
零點漂移：≤6 W/m2

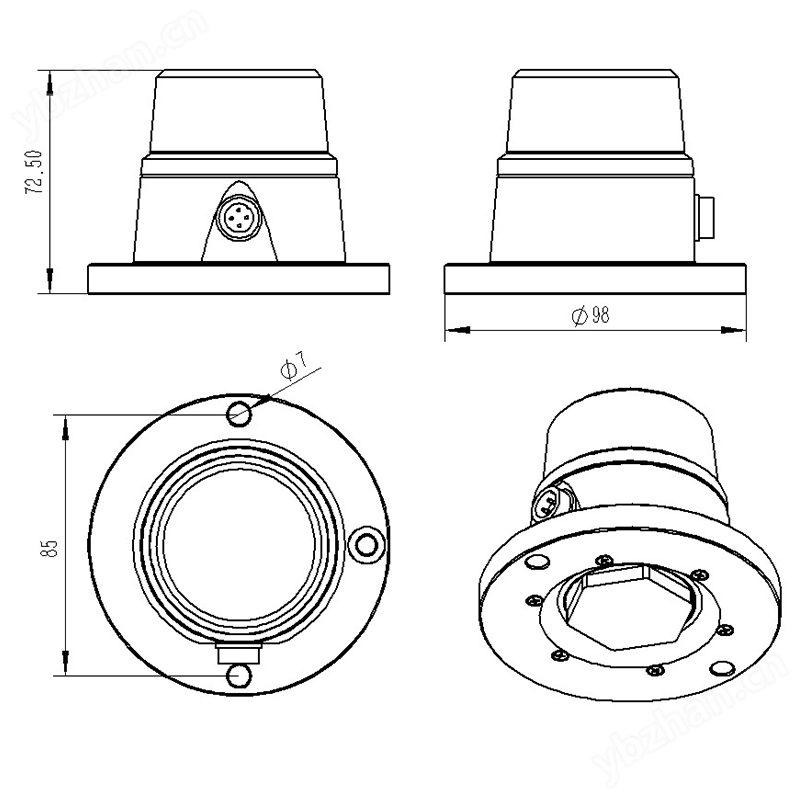

三、產品尺寸圖
Photoelectric total radiation sensor manufacturers are precision instruments used to measure the total solar radiation. It can accurately capture the energy in the full spectrum range of solar. This sensor works based on the principle of the photoelectric effect, converting the received solar radiation energy into electrical signal output through high-sensitivity photoelectric conversion elements, thus the quantitative measurement of the intensity of total solar radiation. It has the advantages of high measurement accuracy, fast response speed, and good stability, and is widely used in meteorological observation agricultural research, and solar energy utilization. In the field of meteorology, it helps to accurately assess the solar radiation resources and provide data support for climate change research; in agriculture, can guide crop planting and irrigation, improving the efficiency of agricultural production; in the solar industry, it is of great significance for the site selection, design, and performance evaluation of solar stations.
